What is a Network Diagram and Why is it Important?

Think of a network diagram as a blueprint for your digital infrastructure. Just like an architect draws building plans before construction begins, network engineers create diagrams before setting up any network equipment. This visual representation shows how devices connect, communicate, and work together in your network.

What Exactly is a Network Diagram?

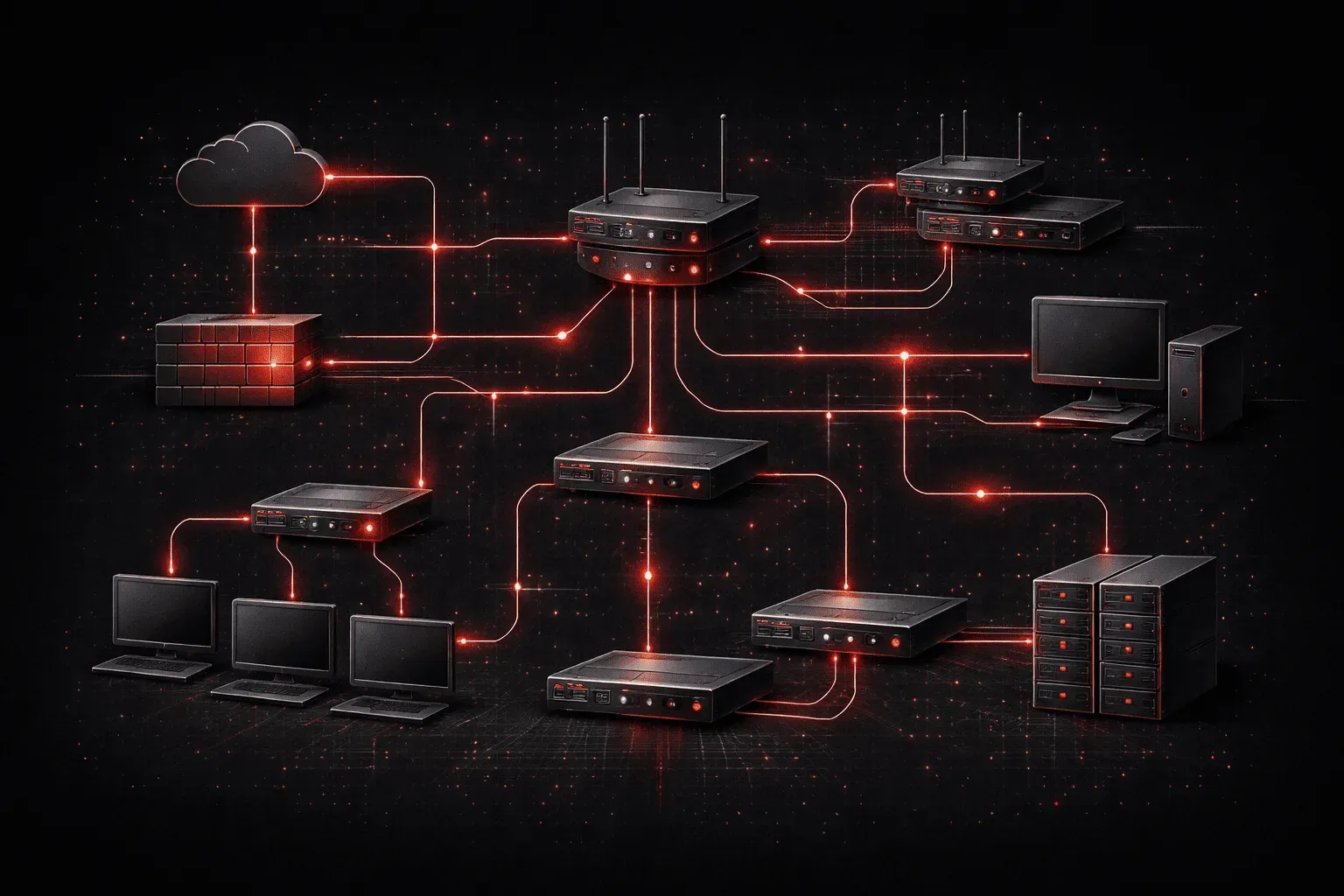

A network diagram is a visual map that illustrates how computers, servers, switches, routers, and other network devices connect to each other. It uses standardized symbols and lines to represent different components and their relationships. Think of it like a subway map that shows stations (devices) and the tracks (connections) between them.

These diagrams typically include:

• Physical devices: Routers, switches, computers, servers, printers
• Connections: Ethernet cables, wireless links, fiber optic cables
• Network segments: Different subnets or VLANs
• IP addressing: How devices are numbered and organized

Why Network Diagrams Matter for Beginners

When you're starting your network planning journey, a diagram serves multiple critical purposes. First, it helps you visualize the big picture before you start connecting cables. Without a plan, you might end up with a tangled mess of equipment that's difficult to manage or troubleshoot.

Consider this scenario: You're setting up a small office network with 10 computers, 2 printers, and internet access. Without a diagram, you might randomly connect devices, leading to poor performance or connectivity issues. With a proper network diagram, you can plan optimal switch placement, ensure adequate ports, and organize your setup logically.

Planning Your Network Setup

A well-designed diagram helps you answer essential questions before you start your network setup:

• How many switch ports do I need?
• Where should I place the router for optimal coverage?
• What cable lengths will I need?
• How will devices communicate with each other?

Troubleshooting Made Simple

When network problems occur, your diagram becomes a troubleshooting roadmap. Instead of tracing physical cables through walls and equipment racks, you can quickly identify the path between affected devices. If the accounting department can't access the printer, your diagram shows exactly which switches and connections are involved.

Types of Network Diagrams

As you develop your understanding, you'll encounter two main types of diagrams:

Physical diagrams show the actual physical layout. Where equipment sits in racks, how cables run through walls, and the physical connections between devices. These are crucial for installation and maintenance work.

Logical diagrams focus on how data flows through the network, showing IP subnets, VLANs, and communication paths rather than physical locations. These help with configuration and network design decisions.

Getting Started with Your First Diagram

For beginners, start simple. Draw a basic diagram showing your internet connection coming into a router, connecting to a switch, and then to your computers. Use rectangles for computers, circles for routers, and squares for switches. Label each connection and include IP addresses if known.

Free tools like draw.io or even paper and pencil work perfectly for learning. Focus on accuracy over aesthetics. Your diagram should clearly show what connects to what.

Remember, every professional network engineer started with simple diagrams. As your skills grow, your diagrams will become more sophisticated, but the fundamental principle remains: always plan before you build.

What's Next

Now that you understand why network diagrams are essential, the next step is learning about the physical components that make up these diagrams. In our next post, we'll explore the fundamental network devices—switches, routers, and access points—and understand their specific roles in your network infrastructure.
