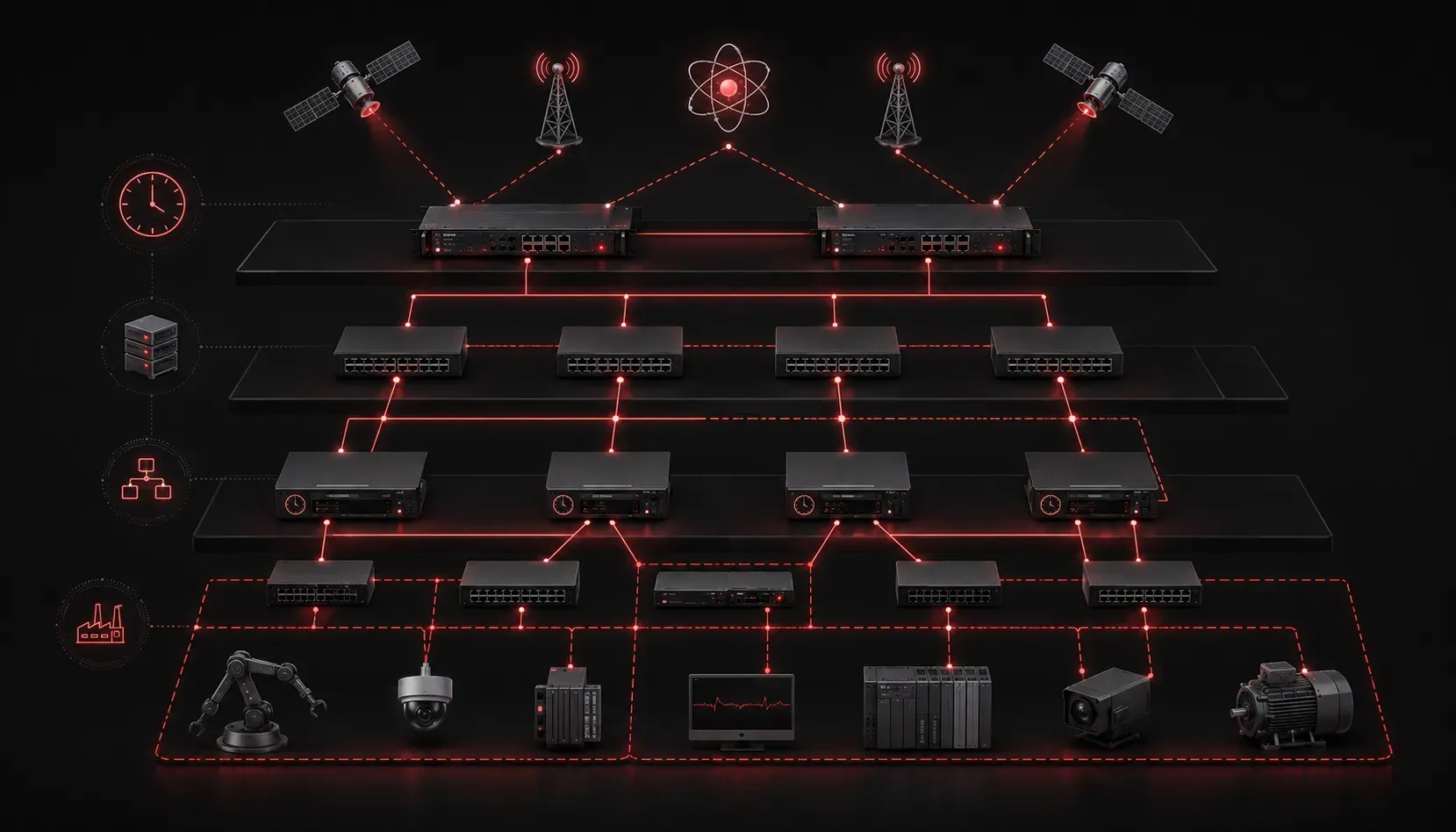

Advanced NTP and PTP Configuration and Interpretation

Advanced configuration and troubleshooting of NTP and PTP protocols in enterprise networks, covering authentication, access control, boundary clocks, and precision timing requirements for mission-critical applications.

Jay Whale

• 4 min read
Advanced NTP and PTP Configuration and Interpretation

Time synchronization sits at the heart of network operations, impacting everything from log correlation to security protocols. While basic Network Time Protocol (NTP) keeps devices reasonably synchronized, Precision Time Protocol (PTP) delivers microsecond accuracy for demanding applications. Understanding the nuances of both protocols and when to deploy each separates competent network engineers from those who truly master enterprise infrastructure.

Advanced NTP Configuration Strategies

Beyond basic ntp server commands lies a sophisticated ecosystem of authentication, access control, and hierarchical design. Enterprise NTP deployments require careful consideration of stratum levels, server redundancy, and security posture.

Implementing NTP Authentication

In production environments, NTP authentication prevents time manipulation attacks. Configure authentication keys and associate them with trusted time sources:

ntp authenticate
ntp authentication-key 1 md5 YourSecretKey
ntp trusted-key 1
ntp server 10.1.1.100 key 1
ntp server 10.1.1.101 key 1

The ntp authenticate command globally enables authentication checking, while trusted-key specifies which keys the local system trusts for time synchronization. Without proper authentication, attackers could potentially skew network time, causing authentication failures or log tampering.

NTP Access Control and Security

Control NTP access using access lists to prevent unauthorized time queries and configuration changes:

access-list 10 permit 192.168.1.0 0.0.0.255
access-list 20 permit 10.0.0.0 0.255.255.255
ntp access-group serve 10
ntp access-group peer 20
ntp access-group serve-only 99

The serve keyword allows both time synchronization and control queries, peer permits symmetric active mode for peer relationships, and serve-only restricts access to time requests only.

Master Clock Configuration

In isolated networks or for backup scenarios, configure devices as authoritative time sources:

ntp master 3
ntp source Loopback0
ntp update-calendar

The stratum level (3 in this example) indicates distance from a reference clock. Lower stratum numbers represent higher accuracy, with stratum 1 reserved for devices directly connected to atomic clocks or GPS receivers.

Precision Time Protocol (PTP) Implementation

PTP delivers sub-microsecond synchronization accuracy, essential for financial trading systems, industrial automation, and 5G networks. Unlike NTP's polling-based approach, PTP uses hardware timestamps and dedicated message exchanges.

PTP Basic Configuration

Enable PTP on interfaces requiring high-precision timing:

ptp mode ordinary
ptp domain 0
ptp priority1 128
ptp priority2 128
!
interface GigabitEthernet0/0/1
 ptp enable
 ptp announce interval 1
 ptp sync interval 0
 ptp delay-req interval 0

The ptp domain isolates PTP networks; devices must share the same domain to synchronize. Priority values determine the Best Master Clock Algorithm (BMCA) selection process.

PTP Boundary and Transparent Clocks

For complex topologies, implement boundary clocks that synchronize to upstream masters while serving downstream slaves:

ptp mode boundary
ptp clock-port slave GigabitEthernet0/0/1
ptp clock-port master GigabitEthernet0/0/2
ptp clock-port master GigabitEthernet0/0/3

Boundary clocks terminate PTP messages, re-timing them with local clock accuracy. This prevents timing error accumulation across network hops, maintaining precision in large deployments.

Interpretation and Troubleshooting

NTP Status Analysis

Interpret NTP synchronization status using detailed show commands:

Router#show ntp status
Clock is synchronized, stratum 4, reference is 10.1.1.100
nominal freq is 250.0000 Hz, actual freq is 249.9995 Hz, precision is 2**18
reference time is E2C5D4A1.D4C6F5E2 (15:23:29.830 UTC Mon Mar 6 2023)
clock offset is -0.345 msec, root delay is 12.34 msec
root dispersion is 15.23 msec, peer dispersion is 2.45 msec
loopfilter state is 'CTRL' (Normal Controlled Loop), drift is -0.000002000 s/s
system poll interval is 64, last update was 127 sec ago

Key indicators include synchronization status, stratum level, clock offset, and root delay. Clock offset should remain under 100ms for most applications, while root delay indicates total network delay to the reference clock.

PTP Monitoring and Verification

Monitor PTP performance with detailed timing statistics:

Router#show ptp port GigabitEthernet0/0/1
PTP Port Dataset for port GigabitEthernet0/0/1:
Port identity: clock-id: 0x12:34:56:FF:FE:78:9A:BC, port-number: 1
Port state: SLAVE
Log min delay request interval: 0
Peer mean path delay: 150 nanoseconds
Log announce interval: 1
Announce receipt timeout: 3
Log sync interval: 0
Delay mechanism: E2E
Log min peer delay request interval: 0
Version number: 2

The peer mean path delay measurement directly impacts synchronization accuracy. Values under 1 microsecond indicate excellent network conditions for high-precision timing.

Common Time Synchronization Issues

Network congestion, asymmetric paths, and hardware limitations commonly affect time accuracy. Use show ntp associations detail to identify problematic time sources:

Router#show ntp associations detail
10.1.1.100 configured, our_master, sane, valid, stratum 2
ref ID 192.168.1.1, time E2C5D4A1.D4C6F5E2 (15:23:29.830 UTC Mon Mar 6 2023)
our mode client, peer mode server, our poll intvl 64, peer poll intvl 64
root delay 5.23 msec, root disp 3.45, reach 377, sync dist 7.890
delay 2.34 msec, offset -0.123 msec, dispersion 1.23
precision 2**6, version 4

The reach value (377 in octal equals 255 in decimal) indicates successful communication over the last 8 polling attempts. Lower values suggest network connectivity issues.

Integration Considerations

Modern networks often require both protocols. NTP handles general device synchronization, while PTP serves applications that demand microsecond precision. Configure NTP as the fallback mechanism when PTP becomes unavailable, ensuring continuous time service.

Consider network design implications; PTP requires low-latency, symmetric paths and hardware timestamp support. Evaluate switch capabilities and network topology before committing to PTP deployment in production environments.

What's Next

Time synchronization forms the foundation for network services like DHCP and DNS, which rely on accurate timestamps for lease management and query logging. Our next exploration covers advanced DHCP relay configuration and DHCP snooping implementation, building upon the precise timing infrastructure we've established.

🔧
Use dedicated network monitoring tools to track NTP stratum drift, PTP clock accuracy, and time synchronization health across your infrastructure. Real-time monitoring prevents time-related authentication failures and ensures compliance with precision timing requirements. PRTG Network Monitor, SolarWinds NPM and ManageEngine OpManager.
